Transport roboti SDCXRB-03A1/RB06-900/ RB08/ RB08A3-1490/ RB08A3-1700/ RB08A3-1840/ RB10/ RB20/ RB50/ RB130/ RB165/ RB210

Mahsulot haqida qisqacha ma'lumot

Transport sanoat robotlari asosan dastgohlarga silliqlash, abrazivlash, yuklash va bo'shatish, avtomatik ishlab chiqarish liniyalarini shtamplash uchun avtomatik transport va boshqalarda qo'llaniladi. Transport roboti qo'lda transport o'rnini bosuvchi robotning harakat yo'lidan foydalanadigan avtomatik mahsulotdir. Uning afzalligi shundaki, u dasturlash orqali barcha turdagi kutilgan vazifalarni bajara oladi. U tuzilishi va ishlashida, ayniqsa sun'iy intellekt va moslashuvchanlikni o'zida mujassam etgan holda, ham inson, ham mashinaning afzalliklarini birlashtiradi.

BIZ BILAN BOG'LANISH

Mahsulot tafsiloti

Mahsulot teglari

Texnik parametrlar

Model raqami		Erkinlik darajasi	Haydash rejimi	Yuk ko'tarish (kg)	Takroriy joylashish aniqligi (mm)	Harakat diapazoni (°)						Maksimal tezlik (°/s)						Maksimal ruxsat etilgan moment (N. m)			Harakat radiusi (mm)	Deaa vazni (kg)
Model raqami		Erkinlik darajasi	Haydash rejimi	Yuk ko'tarish (kg)	Takroriy joylashish aniqligi (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Harakat radiusi (mm)	Deaa vazni (kg)

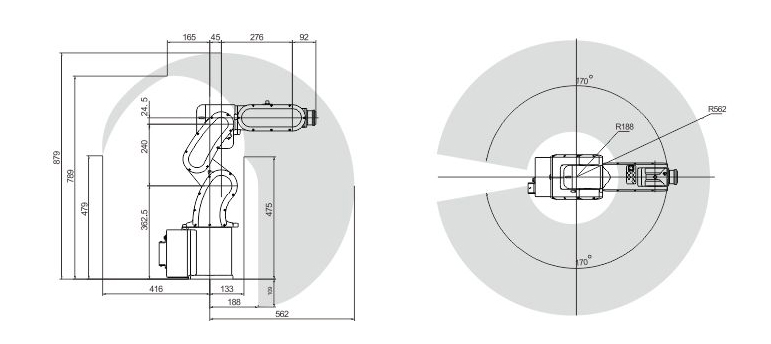

SDCX-RB03A1		6	AC servo drayveri	3	±0.02	±150	+136~-51	+64~-131	±150	±120 ta	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36
SDCX-RB06-900		6	AC servo drayveri	6	±0.03	±170	+135~100	+155~110	±170	±120	±360	337.5	270	375	300	375	468	12	10	6	900	60
SDCX-RB08		6	AC servo drayveri	8	±0,05	±170	+120~-85	+75~-155	±180	±135	±360	154	154	154	420	252	620	14	12	7	1389-yil	180

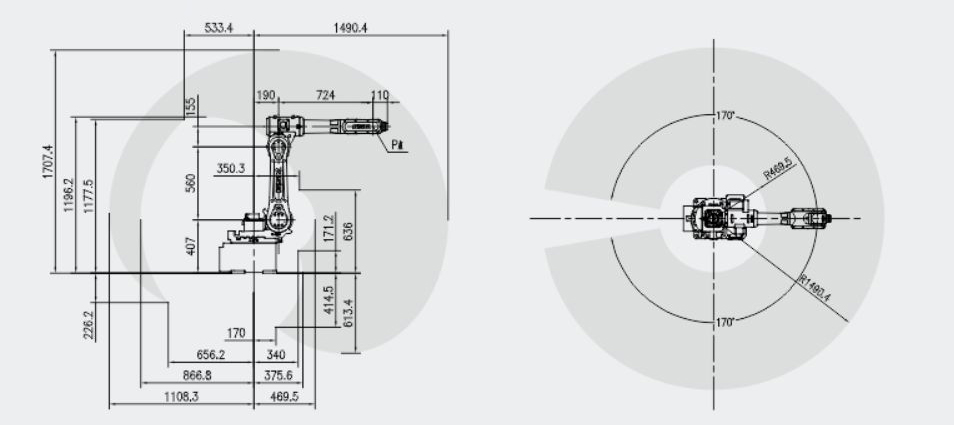

SDCX-RB08A3-1490		6	AC servo drayveri	8	±0,05	±170	+120~-85	+83~-150	±180	±135	±360	200	200	200	400	356	600	14	12	7	1490-yil	185

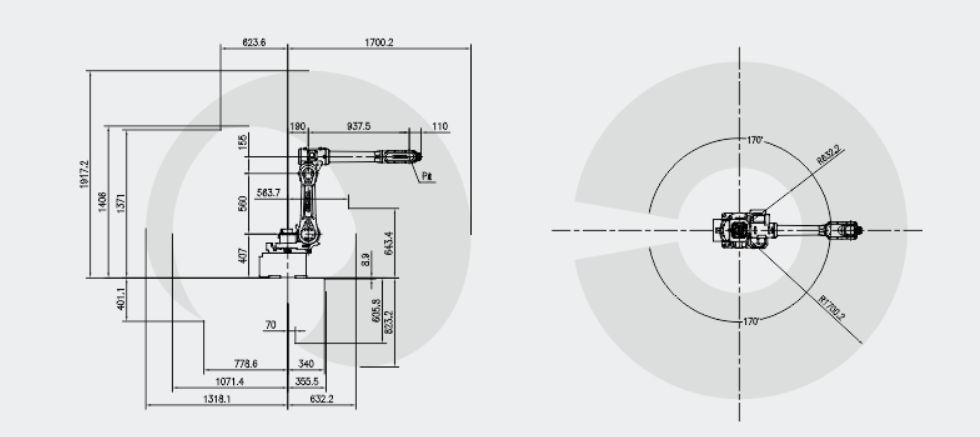

SDCX-RB08A3-1700		6	AC servo drayveri	8	±0,05	±170	+120~-85	+83~-150	±180	±135	±360	180	180	180	400	356	600	14	12	7	1700-yil	187
SDCX-RB08A3-1840		6	AC servo drayveri	6	±0,05	±170	+120~-85	+83~-150	±180	±135	±360	160 ta	160 ta	160 ta	400	356	600	14	12	7	1840-yil	180
SDCX-RB10		6	AC servo drayveri	10	±0,05	±170	+150~-85	+85~-170	±360	±120	±360	200	160 ta	200	360	360	600	43.2	43.2	25.4	1550-yil	240

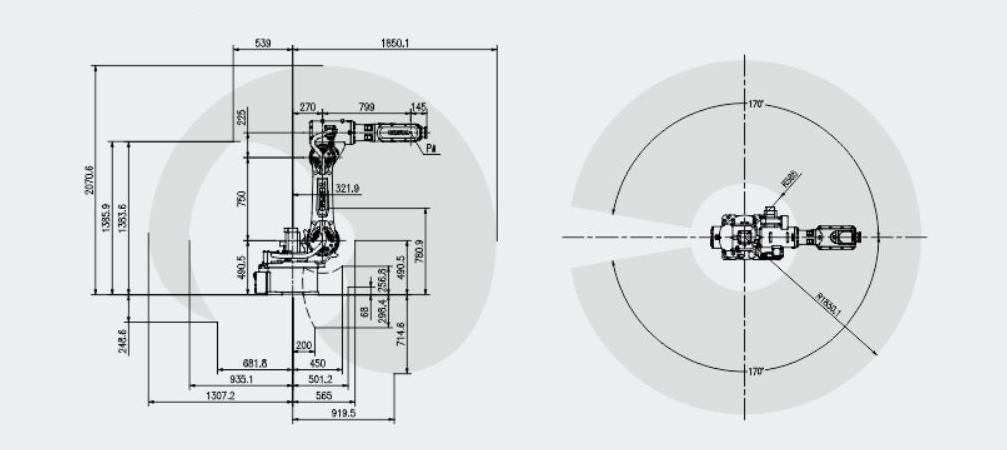

SDCX-RB20 seriyasi	SDCX-RB06-2060	6	AC servo drayveri	6	±0,05	±170	+145~-100	+75~-165	±180	±135	±360	165	165	170	300	356	600	40	12	7	2060-yil	285

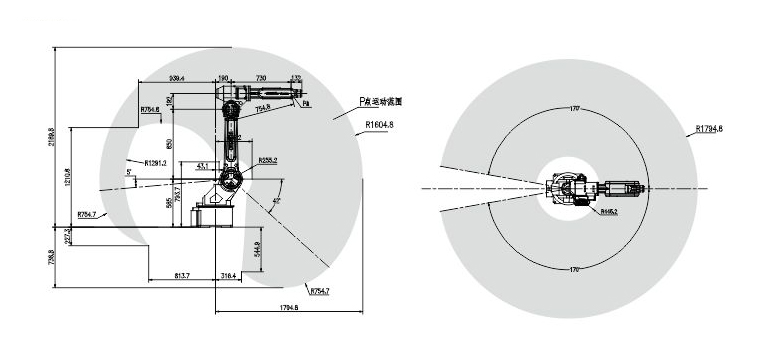

	SDCX-RB15L	6	AC servo drayveri	15	±0,05	±170	+145~-100	+75~-165	±180	±133	±360	165	165	170	300	198	394	40	50	22	1794-yil	300

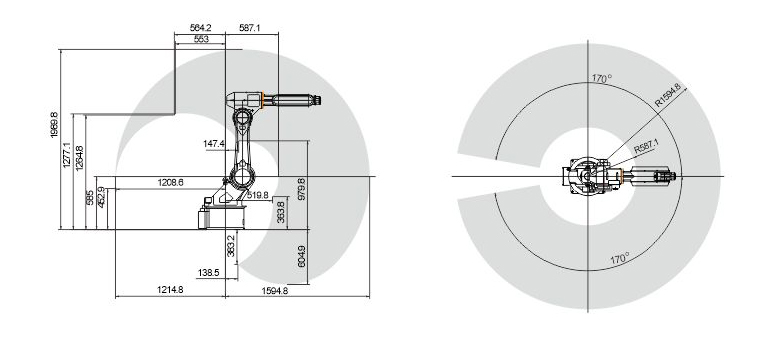

	SDCX-RB20	6	AC servo drayveri	20	±0,05	±170	+132~-95	+73~-163	±180	±133	±360	165	165	170	300	198	394	40	50	22	1595-yil	290
SDCX-RB50		6	AC servo drayveri	50	±0,05	±178	+130~-90	+75~-200	±360	±115	±360	171	171	171	215	251	365	196	196	127	1956-yil	600

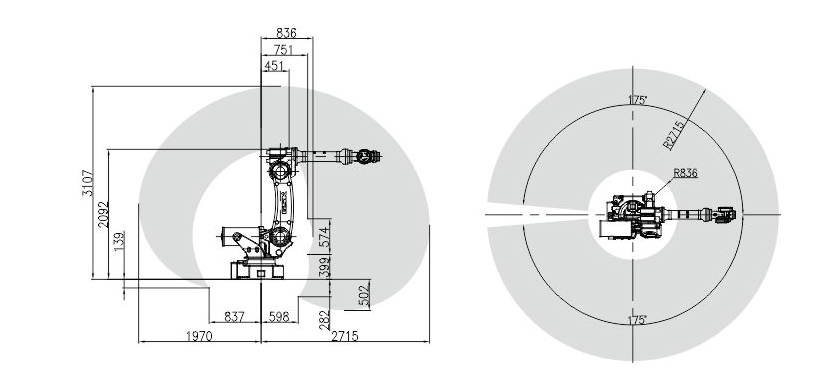

SDCX-RB130		6	AC servo drayveri	130 ta	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	165	174	238	951	951	490	2715	1420-yil

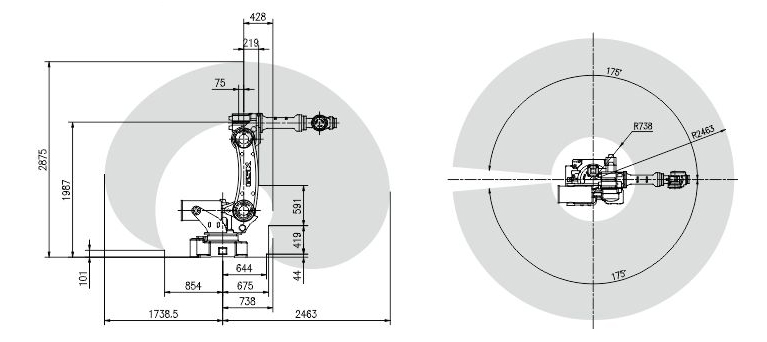

SDCX-RB165		6	AC servo drayveri	165	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	152	160 ta	220	951	951	490	2463	1400
SDCX-RB210		6	AC servo drayveri	210	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	144	118	200	1274-yil	1274-yil	686	2463	1430-yil

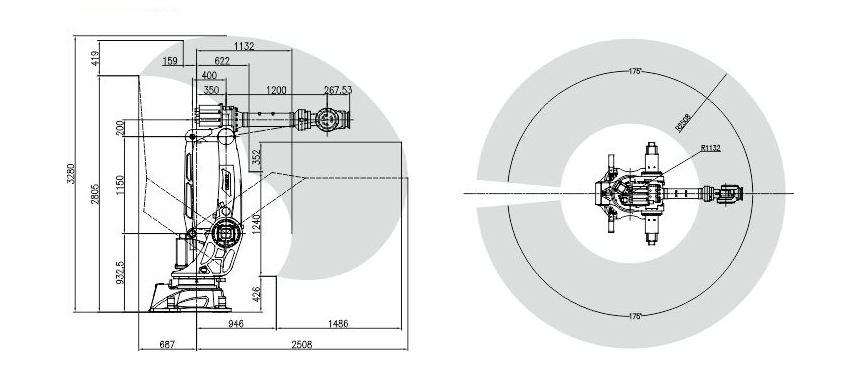

SDCX-RB300		6	AC servo drayveri	300	±0.20	±175	±55	+116~-85	±360	±115	±360	85	95	95	120 ta	120 ta	180	1274-yil	1274-yil	686	2508	1500

Yonuvchan, portlovchi va korroziv gazlar va suyuqliklar bilan aloqa qilishdan saqlaning; Suv, moy va chang bilan sachramaslikka harakat qiling; Elektr shovqin manbalaridan (plazma) uzoqroq tuting.
